Pull
Clean symmetrical design with a delicate flair.
Pulls can be used alone or coupled with back plates to enhance your design. Custom sizes are available upon request.
BB - Available for back to back applications. Back plates are required on glass door applications.

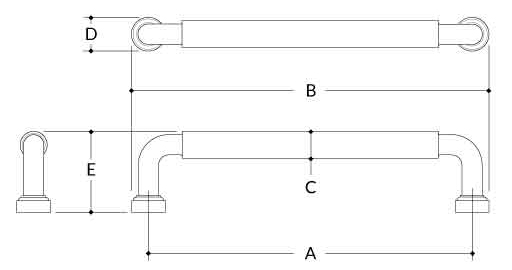

| A | B | C | D | E | ||
|---|---|---|---|---|---|---|
| 7501 | Pull | 4" | 4-5/8" | 1/2" | 5/8" | 1-1/2" |
| 7502 | Pull | 6" | 6-5/8" | 1/2" | 5/8" | 1-1/2" |
| 7503 | Pull | 8" | 8-5/8" | 1/2" | 5/8" | 1-1/2" |
| 7504 | Pull | 10" | 10-5/8" | 1/2" | 5/8" | 1-1/2" |
| 7505 | Pull | 12" | 12-5/8" | 1/2" | 5/8" | 1-1/2" |
| 7507 | Pull | 18" | 18-5/8" | 1/2" | 5/8" | 1-1/2" |
| 7508 | Pull | 24" | 24-5/8" | 1/2" | 5/8" | 1-1/2" |
| 7509 | Pull | 30" | 30-5/8" | 1/2" | 5/8" | 1-1/2" |
| 7513 | Appliance Pull - BB | 8" | 8-13/16" | 5/8" | 13/16" | 1-7/8" |
| 7515 | Appliance Pull - BB | 12" | 12-13/16" | 5/8" | 13/16" | 1-7/8" |
| 7516 | Appliance Pull - BB | 18" | 18-13/16" | 5/8" | 13/16" | 1-7/8" |
