2-1/2" backset 9800 series lock is standard for mortise application.

2-3/8" backset and T-Strikes standard for tubular application.

Standard tubular latch to mortise bolt spacing is 2-3/4".

Knob high, thumbturn low is standard for all applications.

Surface mount is standard for all applications.

Hand hammering available upon request. Price on application.

Number Description

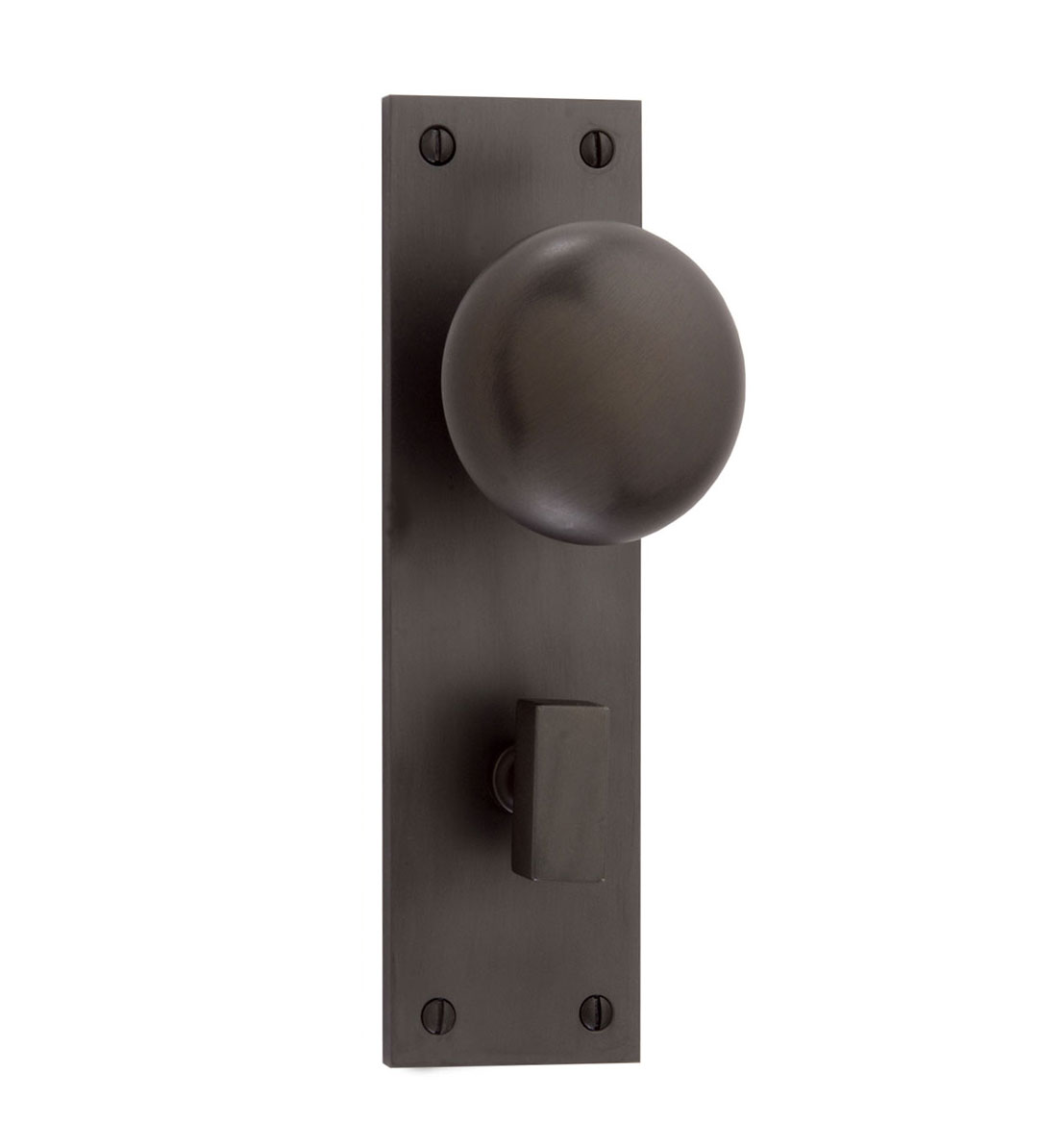

All Door Part Numbers & Descriptions 68400| Privacy Set, Mortise Lock 68402| Passage Set, Mortise Lock 68404| Half Dummy Set, Mortise Lock 68406| Full Dummy Set, Mortise Lock 68408| Privacy Set, Tubular Latch x Mortise Bolt w/ E.E. 68410| Passage Set, Tubular Latch 68412| Half Dummy Set, Tubular Latch 68414| Full Dummy Set, Tubular Latch
